Proportional throttle valves, proportional flow control valves M33x2

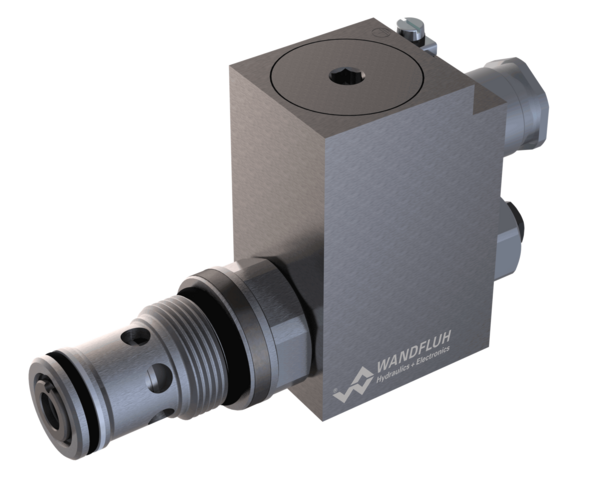

Direct operated, pressure compensated proportional flow control valve as screw-in cartridge for cavity according to ISO 7789. When the solenoid is deenergised, the control spool closes practically leakage-free. The change of the electric current is followed by a proportional volume flow change. From the input (1), the fluid flows over the control and throttling spool to the controlled output (2). The pressure tight encapsulated Ex-protection solenoid coil prevents an explosion on the inside penetrating to the outside as well as an ignitable surface temperature.
Proportional 2-way flow control cartridge
- direct operated, pressure compensated
- Qmax = 70 l/min
- QN max = 55 l/min
- pmax = 350 bar
Application
Proportional flow control valves are suitable for precise speed control, where the load current has to be maintained constant independent of the input and output pressure. These valves are suitable for applications in explosion-hazard areas, open cast and also in mines. The screw-in cartridge is perfectly suitable for installation in control blocks. For machining the cartridge cavity in steel and aluminum blocks, cavity tools are available (hire or purchase). Please refer to the data sheets in register 2.13.
