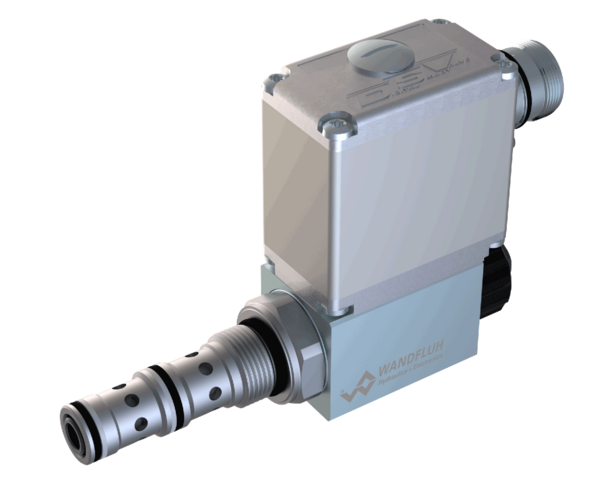

Proportional 3-way flow control cartridge (slip-on-coil, integrated electronics) QDPPM22_ME

Proportional throttle valves, proportional flow control valves M22x1,5

Direct operated, pressure compensated proportional flow control valve with integrated electronics as a screw-in cartridge with a thread M22x1,5 for cavity acc. to ISO 7789. These plug & play valves are factory set and adjusted. High valve-to-valve reproducibility. Housing for electronics with protection class IP67 for harsh environment. Three flow ranges are available. The volume flow is adjusted by a Wandfluh proportional solenoid (VDE standard 0580). Allmost linear flow increase and low hysteresis are typical for this valve. The cartridge and the solenoid made of steel are zinc coated and therefore rustprotected. The housing for the electronics is made of aluminium.

Proportional valves Proportional 3-way flow control cartridge (slip-on-coil, integrated electronics) QDPPM22_ME

Proportional 3-way flow control valve
Screw-in cartridge

  • Integrated electronic
  • Direct operated, pressure compensated
  • Qmax = 40 l/min, pmax  = 350 bar
  • QN max = 25 l/min

Application

Proportional flow control valves are suitable for precise feed control system where the supply volume flow needs to be kept constant even when the load fluctuates. They are implemented in systems calling for good valve-to-valve reproducibility, easy installation, comfortable operation and high precision in indust-rial hydraulics as well as in mobile hydraulics. The screw-in cartridge is very suitable for mounting in control blocks, flange bodies and sandwich plates of the size NG6. Cavity tools are available for machining cartridge cavities (hire or purchase).Please refer to the data sheets in register 2.13.
